Human endothelial cell-specific molecule 1(ESM-1) ELISA Kit

Product Details

Description

The Human endothelial cell-specific molecule 1 (ESM1) ELISA kit enables quantification of human DEFA1 in solution, e.g. in serum, plasma, tissue homogenates, or cell lysates. The product is more flexible to set up the ELISA assay. ESM1, also known as endocan, is a dermatan sulphate proteoglycan expressed and secreted primarily by the endothelial cells in the lung and kidney. ESM1 expression in endothelial and epithelial cells is upregulated by TNF-α, IL-1β, and VEGF, but downregulated by IL-4 and IFN-γ. Plasma ESM1 levels are increased in patients with inflammatory disorders like sepsis, suggesting that ESM1 could be a potential biomarker for endothelial activation or dysfunction. EMS1 is frequently overexpressed in many cancer types and is related to tumor growth and angiogenesis during tumor progression. Tung-Wei Hung etc. proposed that overexpression of ESM1 promotes cell migration and renal fibrosis progression by modulating the endothelial-to-mesenchymal transition (EndoMT) pathways in vitro and in vivo.

The assay is based on the Sandwich ELISA mechanism and enzyme-substrate chromogenic reaction. The intensity of the color is proportional to the ESM1 content in the sample. This kit has been verified with nanogram-level of sensitivity, high specificity, precision, good linearity, high recovery, and lot-to-lot consistency. More validation details are described in the product instructions.

Target Name endothelial cell-specific molecule 1
Alternative Names Endocan ELISA Kit; Endothelial cell specific molecule 1 ELISA Kit; Endothelial cell-specific molecule 1 ELISA Kit; ESM 1 ELISA Kit; ESM 1 secretory protein ELISA Kit; ESM-1 ELISA Kit; Esm1 ELISA Kit; ESM1 secretory protein ELISA Kit; ESM1_HUMAN ELISA Kit
Abbreviation ESM1
Uniprot No. Q9NQ30
Species Homo sapiens (Human)
Sample Types serum, plasma, tissue homogenates, cell lysates
Detection Range 0.156 ng/mL-10 ng/mL
Sensitivity 0.039 ng/mL
Assay Time 1-5h
Sample Volume 50-100ul
Detection Wavelength 450 nm
Research Area Tags & Cell Markers
Assay Principle quantitative
Measurement Sandwich
Precision
Intra-assay Precision (Precision within an assay): CV%
Three samples of known concentration were tested twenty times on one plate to assess.
Inter-assay Precision (Precision between assays): CV%
Three samples of known concentration were tested in twenty assays to assess.

Linearity
To assess the linearity of the assay, samples were spiked with high concentrations of human ESM-1 in various matrices and diluted with the Sample Diluent to produce samples with values within the dynamic range of the assay.
  Sample Serum(n=4)
1:1 Average % 87
Range % 81-92
1:2 Average % 95
Range % 91-105
1:4 Average % 93
Range % 90-100
1:8 Average % 95
Range % 85-98
Recovery
The recovery of human ESM-1 spiked to levels throughout the range of the assay in various matrices was evaluated. Samples were diluted prior to assay as directed in the Sample Preparation section.
Sample Type Average % Recovery Range
Serum (n=5) 87 80-98
EDTA plasma (n=4) 95 92-105

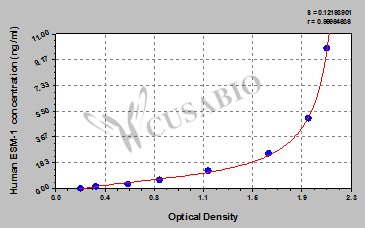

Typical Data
These standard curves are provided for demonstration only. A standard curve should be generated for each set of samples assayed.
ng/ml OD1 OD2 Average Corrected
10 2.126 2.002 2.064 1.870
5 1.973 1.876 1.925 1.731
2.5 1.636 1.604 1.620 1.426
1.25 1.186 1.139 1.163 0.969
0.625 0.803 0.784 0.794 0.600
0.312 0.574 0.539 0.557 0.363
0.156 0.316 0.309 0.313 0.119
0 0.199 0.188 0.194
Materials provided
  • A micro ELISA plate ---The 96-well plate has been pre-coated with an anti-human ESM1 antibody. This dismountable microplate can be divided into 12 x 8 strip plates.
  • Two vials lyophilized standard ---Dilute a bottle of the standard at dilution series, read the OD values, and then draw a standard curve.
  • One vial Biotin-labeled ESM1 antibody (100 x concentrate) (120 μl/bottle) ---Act as the detection antibody.
  • One vial HRP-avidin (100 x concentrate) (120 μl/bottle) ---Bind to the detection antibody and react with the TMB substrate to make the solution chromogenic.
  • One vial Biotin-antibody Diluent (15 ml/bottle) ---Dilute the Biotin-antibody.
  • One vial HRP-avidin Diluent (15 ml/bottle) ---Dilute the HRP-avidin solution.
  • One vial Sample Diluent (50 ml/bottle)---Dilute the sample to an appropriate concentration.
  • One vial Wash Buffer (25 x concentrate) (20 ml/bottle) ---Wash away unbound or free substances.
  • One vial TMB Substrate (10 ml/bottle) ---Act as the chromogenic agent. TMB interacts with HRP, eliciting the solution turns blue.
  • One vial Stop Solution (10 ml/bottle) ---Stop the color reaction. The solution color immediately turns from blue to yellow.
  • Four Adhesive Strips (For 96 wells) --- Cover the microplate when incubation.
  • An instruction manual
Materials not provided
  • A microplate reader capable of measuring absorbance at 450 nm, with the correction wavelength set at 540 nm or 570 nm.
  • An incubator can provide stable incubation conditions up to 37°C±5°C.
  • Centrifuge
  • Vortex
  • Squirt bottle, manifold dispenser, or automated microplate washer
  • Absorbent paper for blotting the microtiter plate
  • 50-300ul multi-channel micropipette
  • Pipette tips
  • Single-channel micropipette with different ranges
  • 100ml and 500ml graduated cylinders
  • Deionized or distilled water
  • Timer
  • Test tubes for dilution
Storage Store at 2-8°C. Please refer to protocol.
Lead Time 3-5 working days
